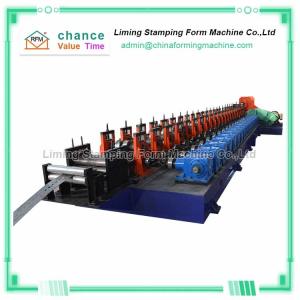

Factory direct sales customized shelf column forming machine
The shelf column forming machine is a forming equipment used to produce shelf columns.
The forming process of the shelf column forming machine: uncoiling-punching-feeding-roll forming-cut to length-splicing, these processes are composed, and the shelf column forming machine is the combination of these forming processes. A piece of equipment, and controlled by PLC electronic control, can help you save a lot of labor costs.
Technical parameters of Factory direct sales customized shelf column forming machine
| Machine sizes: | 15*1.5*1.8m | Roller diameter: | Φ100mm |
| Speed: | 8-15m/min | Power: | 45kw |
| Molding row: | 12rollers | Die Material: | GCR12MOV (HCR58-62) |
| Machine weight: | 35T | Transmission type: | Gearbox drive |
The punching device of the shelf column forming machine can use roll punching. The blanking position produced by the roll punching is accurate and the punching speed is fast, which greatly breaks the pattern of the conventional main machine according to the punching speed and can help you produce efficiently.
Shelf column forming machines need customized production. Because each country has different profile sizes, mass production of shelf column forming machines cannot be carried out. Therefore, customized production is required, but please rest assured that we have an experienced design team that can help you Design and manufacture high-precision shelf column forming machines.
